Key notes for using AXNEN-M02 3 axis handheld smartphone gimbal stabilizer:

【Note 1】:
Before turning on the AXNEN-M02 power supply, you must follow the following steps:
● First, loosen the knob to fully extend the gimbal arm.
● Then, tighten the knob to secure the gimbal arm.
● Then, unlock the tilt axis clip and the phone holder will face upward.
● Then, unlock the pan axis clip and the remote control will face you.
● Finally, center the phone in the phone holder. (Be careful to follow the direction of the lens on the phone holder.)

【Note 2】:
Mind your phone size and system, we suggest you take off the phone protect case for more stable.
● Suitable phone size:
Width should between 55-90mm ; Weight should less than 280g ; Thickness should less than 11 mm.
● Suitable mobile phone system:
Android 9.0 and above / iOS 11 and above.

Parameters of AXNEN M02 and Optional Modules:

AXNEN-M02 features display and detailed introduction:

Optional AI Tracking Camera Module

The AXNEN M02 can be enhanced with an optional AI module, which must be installed on the side designated for the phone. When paired with the AI module, the stabilizer can easily perform face tracking.

● AI Module with Gesture Control function
When connected to the stabilizer, the AI module's gesture control feature is activated by default (indicated by a steady green light).

● "OK" Gesture: Initiates center-follow mode.
● "Palm" Gesture: Pauses the follow mode (the module light turns red).
● "Double L" Gesture: Activates fixed-point follow. If you prefer not to be centered, pause the follow mode, position yourself in the desired corner, and make the "double L" gesture. The module will keep you in that specific corner.
● "Double Thumbs Up" Gesture: Switches between landscape and portrait modes and pauses the follow mode (simultaneously press the pause button).

● To disable the gesture control function, press the "hand" button on the module. The blue light will remain on, indicating that the gesture control is turned off.

Optional Fill Light Module

The AXNEN M02 can be enhanced with an optional fill light, which can be attached to either side of the phone clip. Each fill light offers 3 different colors, and each color has 3 adjustable brightness levels.

Use Cases
● Indoor Video: Provides necessary illumination in low-light environments.
● Outdoor Video: Balances natural light during early morning or late evening shoots.
● Product Reviews: Highlights product details and colors.
● Interviews: Creates a professional look by ensuring well-lit subjects.

By using the optional fill light module, you can achieve high-quality lighting in any video scenario.

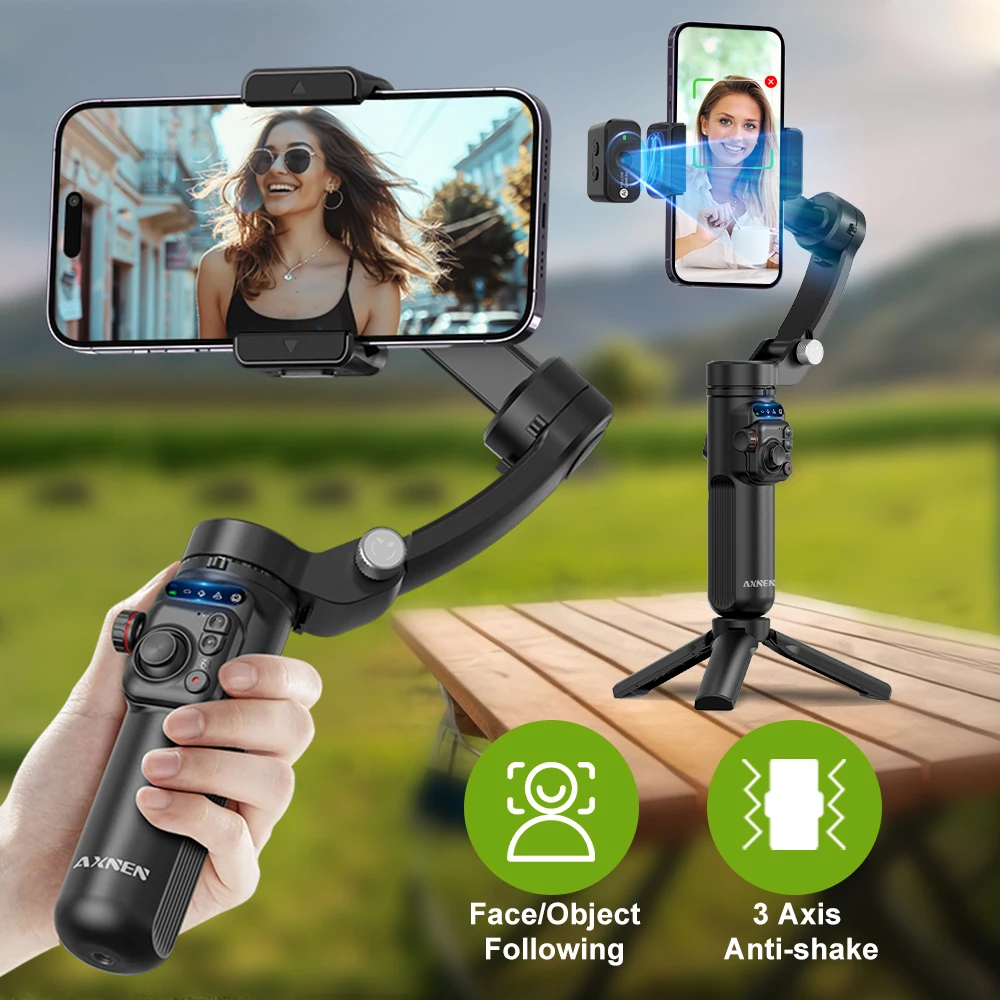

3-Axis Anti-Shake Design

The AXNEN M02 handheld gimbal is a high-performance 3-axis anti-shake stabilizer, ensuring smoother video recordings.

Pan Angle: 300°
Roll Angle: 325°
Tilt Angle: 80°

Use Cases
● Action Vlogging: Smooth footage while running or cycling.
● Travel Vlogs: Stable videos while exploring new places.
● Product Reviews: Steady and professional demonstrations.
● Interviews: Clear and focused shots during conversations.
Achieve professional-grade stability with the AXNEN M02 in any vlogging scenario.

One-Key Switch Between Horizontal and Vertical Shooting

The AXNEN M02 handheld gimbal lets you effortlessly switch between horizontal and vertical modes with a quick double press of the "M" button. This feature enhances your video creation, making it easier and more efficient in various situations.

AXNEN M02 with Detachable Remote Control, Up to 10 Meters Connection.

● Magnetic Charging: When attached to the gimbal, the remote control charges automatically while the gimbal is on.

● Zoom/Focus Wheel:
One Click: Switch between zoom and focus mode
Roll: Zoom in/out or adjust manual focus length

● Switch Modes:
Press Once: Cycle through modes (PF-AF-AL-FV)
Press Twice: Switch between horizontal and vertical modes

● Lock Button:
Press Once: Enable tracking with the app
Long Press: Lock the current mode

● Joystick:
Push the joystick to control the gimbal's rotation direction

● Camera Button:
Press Once: Take a photo
Press Twice: Switch between photo and video mode
Please Note:

*Most buttons require a Bluetooth connection and the app to be active to function.
*This overview shows only some of the remote control's features. For more details, refer to the user manual.

AXNEN M02 with Zoom/Focus Control Wheel

AXNEN M02 remote control has a focus and zoom control wheel.
It works in the APP (after connecting with APP and bluetooth successfully).

● Wheel Initial State : Zoom control function.
Rotate the wheel to zoom in or out.

● One Click Wheel :
Swtich from Zoom mode to Focus mode.

● Roll Wheel : (Now is Focus control function.)
Rotate the wheel to change focus length.

● One Click Wheel Again:
Swtich from Focus mode to Zoom mode.

*These functions can only be effective in the APP.
*Some mobile phones cannot support focus control function.

Seven Classic Shooting Modes

● Semi-Follow Mode: Only the Pan axis follows the handle motion.
Suitable Scenes: When there are minimal changes in pitch angle and you need to rotate the camera left and right.

● Full Follow Mode: Both the Pan and Tilt axes follow the handle motion.
Suitable Scenes: When shooting with changes in pitch angle.

● Fully Locked Mode: All axes are fully locked.
Suitable Scenes: For straight-line follow shooting.

● POV Mode: First-person view.
Suitable Scenes: For free follow shooting, imitating a first-person perspective.

● Inception Mode: Classic Inception scene video.
Suitable Scenes: For creating dramatic, swirling effects similar to the Inception movie.

● Semi-Follow GO Mode: Faster changes in left and right shots.
Suitable Scenes: For dynamic scenes where you need quick left and right movements.

● Full Follow GO Mode: Faster changes in pitch angle.
Suitable Scenes: For dynamic scenes with rapid changes in pitch angle.

A variety of creative features through the “Gimbal Show” app

● Face and Object Tracking: Keep your subject in focus with precise face and object tracking.
● Gesture Control: Control the stabilizer and take photos with simple hand gestures.
● Panoramic Shooting: Easily capture stunning wide-angle views.
● Clone Me Mode: Create fun and unique split-screen effects.
● Nine-Grid Composition: Perfectly frame your shots with the nine-grid guide.
● Hitchcock and Inception Effects: Add dramatic and cinematic touches to your video shooting with classic techniques.

User Instructions Manual with 12 Languages

AXNEN Official Store created comprehensive user manuals in 12 languages for AXNEN M02 gimbal: English, Portuguese, Spanish, German, French, Italian, Polish, Russian, Japanese, Korean, Hebrew, and Arabic.

Long-Lasting Battery for Uninterrupted Video Creation

Equipped with a powerful 3000mAh battery, the AXNEN M02 provides up to 6 hours of continuous use. Whether you're filming an all-day event, capturing your daily adventures, or creating professional content, the AXNEN M02 ensures that you stay powered without frequent recharges. With a charging time of just 1-2 hours, you can quickly get back to your projects with minimal downtime.

Compact and Foldable for Easy Portability

AXNEN M02 is a foldable design. When folded, its size is similar to that of a mobile phone. The specific size after storage is 157*106*65 mm (6.18*4.17*2.55 inches), and it comes with a specially customized storage bag by AXNEN for easy carrying.

The appropriate mobile phone size and weight are as follows:

Phone's weight less than 280 grams, Phone's width between 55mm-90mm, Phone's thickness less than 11mm. We suggest you take off the phone case before install for more stable fixing on gimbal.
